二进制部署一套高可用K8s集群-1.25+（五）

浅时光博客 · 4月18日 · 2022年 8.0w 次已读

六、部署高可用kube-apiserver集群

1、创建 kubernetes-master 证书和私钥

[root@k8s-master1 work]# cat > kubernetes-csr.json <<EOF
{
  "CN": "kubernetes-master",
  "hosts": [
    "127.0.0.1",
    "192.168.66.62",
    "192.168.66.63",
    "192.168.66.64",
    "10.254.0.1",
    "kubernetes",
    "kubernetes.default",
    "kubernetes.default.svc",
    "kubernetes.default.svc.cluster",
    "kubernetes.default.svc.cluster.local.",
    "kubernetes.default.svc.cluster.local."
  ],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "ShangHai",
      "L": "ShangHai",
      "O": "k8s",
      "OU": "dqz"
    }
  ]
}
EOF

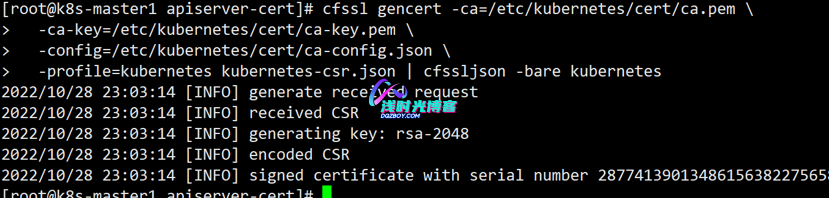

  • 生成证书和私钥
[root@k8s-master1 work]# cfssl gencert -ca=/opt/k8s/work/ca.pem \
  -ca-key=/opt/k8s/work/ca-key.pem \
  -config=/opt/k8s/work/ca-config.json \
  -profile=kubernetes kubernetes-csr.json | cfssljson -bare kubernetes
[root@k8s-master1 work]# ls kubernetes*pem
kubernetes-key.pem  kubernetes.pem
  • 将生成的证书和私钥文件拷贝到集群Master节点
[root@k8s-master1 work]# for node_ip in ${MASTER_IPS[@]}
  do
    echo ">>> ${node_ip}"
    ssh root@${node_ip} "mkdir -p /etc/kubernetes/cert"
    scp kubernetes*.pem root@${node_ip}:/etc/kubernetes/cert/
  done

2、创建加密配置文文章来源(Source)：https://dqzboy.com件

  • Kubernetes 服务器必须为 1.13 或更高版本
  • 重要：对于高可用配置（有两个或多个控制平面节点），加密配置文件必须相同！ 否则，kube-apiserver 组件无法解密存储在 etcd 中的数据。
  • kube-apiserver 的参数 --encryption-provider-config 控制 API 数据在 etcd 中的加密方式
[root@k8s-master1 work]# cat > encryption-config.yaml <<EOF
kind: EncryptionConfig
apiVersion: v1
resources:
  - resources:
      - secrets
      - configmaps
    providers:
      - aescbc:
          keys:
            - name: key1
              secret: ${ENCRYPTION_KEY}
      - identity: {}
EOF
  • 将加密配置文件拷贝到 master 节点的 /etc/kubernetes 目录下
[root@k8s-master1 work]# for node_ip in ${MASTER_IPS[@]}
  do
    echo ">>> ${node_ip}"
    scp encryption-config.yaml root@${node_ip}:/etc/kubernetes/
  done

3、创建审计策略文件

[root@k8s-master1 work]# cat > audit-policy.yaml <<EOF
apiVersion: audit.k8s.io/v1 # This is required.
kind: Policy
# Don't generate audit events for all requests in RequestReceived stage.
omitStages:
  - "RequestReceived"
rules:
  # Log pod changes at RequestResponse level
  - level: RequestResponse
    resources:
    - group: ""
      # Resource "pods" doesn't match requests to any subresource of pods,
      # which is consistent with the RBAC policy.
      resources: ["pods"]
  # Log "pods/log", "pods/status" at Metadata level
  - level: Metadata
    resources:
    - group: ""
      resources: ["pods/log", "pods/status"]

  # Don't log requests to a configmap called "controller-leader"
  - level: None
    resources:
    - group: ""
      resources: ["configmaps"]
      resourceNames: ["controller-leader"]

  # Don't log watch requests by the "system:kube-proxy" on endpoints or services
  - level: None
    users: ["system:kube-proxy"]
    verbs: ["watch"]
    resources:
    - group: "" # core API group
      resources: ["endpoints", "services"]

  # Don't log authenticated requests to certain non-resource URL paths.
  - level: None
    userGroups: ["system:authenticated"]
    nonResourceURLs:
    - "/api*" # Wildcard matching.
    - "/version"

  # Log the request body of configmap changes in kube-system.
  - level: Request
    resources:
    - group: "" # core API group
      resources: ["configmaps"]
    # This rule only applies to resources in the "kube-system" namespace.
    # The empty string "" can be used to select non-namespaced resources.
    namespaces: ["kube-system"]

  # Log configmap and secret changes in all other namespaces at the Metadata level.
  - level: Metadata
    resources:
    - group: "" # core API group
      resources: ["secrets", "configmaps"]

  # Log all other resources in core and extensions at the Request level.
  - level: Request
    resources:
    - group: "" # core API group
    - group: "extensions" # Version of group should NOT be included.

  # A catch-all rule to log all other requests at the Metadata level.
  - level: Metadata
    # Long-running requests like watches that fall under this rule will not
    # generate an audit event in RequestReceived.
    omitStages:
      - "RequestReceived"
EOF
  • 分发审计策略文件至所有Mater节点
[root@k8s-master1 work]# for node_ip in ${MASTER_IPS[@]}
  do
    echo ">>> ${node_ip}"
    scp audit-policy.yaml root@${node_ip}:/etc/kubernetes/audit-policy.yaml
  done

4、创建后续访问 metrics-server 使用的证书

  • proxy-client-csr.json文件是用于生成Kubernetes Proxy客户端的证书签名请求（CSR）文件的JSON格式文件
[root@k8s-master1 work]# cat > proxy-client-csr.json <<EOF
{
  "CN": "aggregator",
  "hosts": [],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "ShangHai",
      "L": "ShangHai",
      "O": "k8s",
      "OU": "dqz"
    }
  ]
}
EOF

4.2：生成证书和私钥

[root@k8s-master1 work]# cfssl gencert -ca=/etc/kubernetes/cert/ca.pem \
  -ca-key=/etc/kubernetes/cert/ca-key.pem  \
  -config=/etc/kubernetes/cert/ca-config.json  \
  -profile=kubernetes proxy-client-csr.json | cfssljson -bare proxy-client

[root@k8s-master1 work]# ls proxy-client*.pem
proxy-client-key.pem  proxy-client.pem

4.3：将生成的证书和私钥文件拷贝到Master节点

[root@k8s-master1 work]# for node_ip in ${MASTER_IPS[@]}
  do
    echo ">>> ${node_ip}"
    scp proxy-client*.pem root@${node_ip}:/etc/kubernetes/cert/
  done

5、为各节点创建和分发 kube-apiserver systemd unit 文件

5.1、创建 kube-apiserver systemd unit 模板文件

[root@k8s-master1 work]# cat > kube-apiserver.service.template <<EOF
[Unit]
Description=Kubernetes API Server
Documentation=https://github.com/GoogleCloudPlatform/kubernetes
After=network.target

[Service]
WorkingDirectory=${K8S_DIR}/kube-apiserver
ExecStart=/opt/k8s/bin/kube-apiserver \\
  --advertise-address=##MASTER_IP## \\
  --default-not-ready-toleration-seconds=360 \\
  --default-unreachable-toleration-seconds=360 \\
  --max-mutating-requests-inflight=2000 \\
  --max-requests-inflight=4000 \\
  --default-watch-cache-size=200 \\
  --delete-collection-workers=2 \\
  --encryption-provider-config=/etc/kubernetes/encryption-config.yaml \\
  --etcd-cafile=/etc/kubernetes/cert/ca.pem \\
  --etcd-certfile=/etc/kubernetes/cert/kubernetes.pem \\
  --etcd-keyfile=/etc/kubernetes/cert/kubernetes-key.pem \\
  --etcd-servers=${ETCD_ENDPOINTS} \\
  --bind-address=##MASTER_IP## \\
  --secure-port=6443 \\
  --tls-cert-file=/etc/kubernetes/cert/kubernetes.pem \\
  --tls-private-key-file=/etc/kubernetes/cert/kubernetes-key.pem \\
  --audit-log-maxage=15 \\
  --audit-log-maxbackup=3 \\
  --audit-log-maxsize=100 \\
  --audit-log-truncate-enabled \\
  --audit-log-path=${K8S_DIR}/kube-apiserver/audit.log \\
  --audit-policy-file=/etc/kubernetes/audit-policy.yaml \\
  --profiling \\
  --anonymous-auth=false \\
  --client-ca-file=/etc/kubernetes/cert/ca.pem \\
  --enable-bootstrap-token-auth \\
  --requestheader-allowed-names="aggregator" \\
  --requestheader-client-ca-file=/etc/kubernetes/cert/ca.pem \\
  --requestheader-extra-headers-prefix="X-Remote-Extra-" \\
  --requestheader-group-headers=X-Remote-Group \\
  --requestheader-username-headers=X-Remote-User \\
  --service-account-key-file=/etc/kubernetes/cert/ca.pem \\
  --service-account-issuer=kubernetes.default.svc \\
  --service-account-signing-key-file=/etc/kubernetes/cert/ca-key.pem \\
  --authorization-mode=Node,RBAC \\
  --runtime-config=api/all=true \\
  --enable-admission-plugins=NodeRestriction \\
  --allow-privileged=true \\
  --apiserver-count=3 \\
  --event-ttl=168h \\
  --kubelet-certificate-authority=/etc/kubernetes/cert/ca.pem \\
  --kubelet-client-certificate=/etc/kubernetes/cert/kubernetes.pem \\
  --kubelet-client-key=/etc/kubernetes/cert/kubernetes-key.pem \\
  --kubelet-timeout=10s \\
  --proxy-client-cert-file=/etc/kubernetes/cert/proxy-client.pem \\
  --proxy-client-key-file=/etc/kubernetes/cert/proxy-client-key.pem \\
  --service-cluster-ip-range=${SERVICE_CIDR} \\
  --service-node-port-range=${NODE_PORT_RANGE} \\
  --enable-aggregator-routing=true \\
  --v=4

Restart=on-failure
RestartSec=10
Type=notify
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target
EOF

5.2：重新命名systemd unit 文件

[root@k8s-master1 work]# for (( i=0; i < 3; i++ ))
  do
    sed -e "s/##NODE_NAME##/${NODE_NAMES[i]}/" -e "s/##MASTER_IP##/${MASTER_IPS[i]}/" kube-apiserver.service.template > kube-apiserver-${MASTER_IPS[i]}.service
  done

[root@k8s-master1 work]# ls kube-apiserver*.service
kube-apiserver-192.168.66.62.service  kube-apiserver-192.168.66.64.service
kube-apiserver-192.168.66.63.service

5.3：分发生成的 systemd unit 文件到所有Master节点

[root@k8s-master1 work]# for node_ip in ${MASTER_IPS[@]}
  do
    echo ">>> ${node_ip}"
    scp kube-apiserver-${node_ip}.service root@${node_ip}:/etc/systemd/system/kube-apiserver.service
  done

6文章来源(Source)：浅时光博客、启动 kube-apiserver 服务

[root@k8s-master1 work]# for node_ip in ${MASTER_IPS[@]}
  do
    echo ">>> ${node_ip}"
    ssh root@${node_ip} "mkdir -p ${K8S_DIR}/kube-apiserver"
    ssh root@${node_ip} "systemctl daemon-reload && systemctl enable kube-apiserver && systemctl restart kube-apiserver"
  done

7、检查 kube-apiserver 运行状态

[root@k8s-master1 work]# for node_ip in ${MASTER_IPS[@]}
  do
    echo ">>> ${node_ip}"
    ssh root@${node_ip} "systemctl status kube-apiserver |grep 'Active:'"
  done

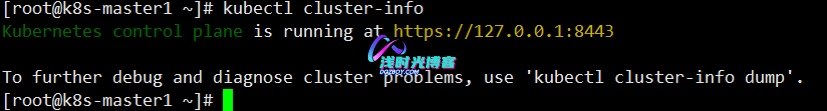

8、检查集群状态

[root@k8s-master1 ~]# kubectl cluster-info

七、部署高可用kube-controller-manager集群

该集群包含 3 个节点，启动后将通过竞争选举机制产生一个 leader 节点，其它节点为阻塞状态。当 leader 节点不可用时，阻塞的节点将再次进行选举产生新的 leader 节点，从而保证服务的可用性。

1、创建 kube-controller-manager 证书和私钥

1.1：创建证书签名请求

[root@k8s-master1 ~]# cd /opt/k8s/work
[root@k8s-master1 work]# cat > kube-controller-manager-csr.json <<EOF
{
    "CN": "system:kube-controller-manager",
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "hosts": [
      "127.0.0.1",
      "192.168.66.62",
      "192.168.66.63",
      "192.168.66.64"
    ],
    "names": [
      {
        "C": "CN",
        "ST": "ShangHai",
        "L": "ShangHai",
        "O": "system:kube-controller-manager",
        "OU": "dqz"
      }
    ]
}
EOF

1.2：生成证书和私钥

[root@k8s-master1 ~]# cd /opt/k8s/work
[root@k8s-master1 work]# cfssl gencert -ca=/opt/k8s/work/ca.pem \
  -ca-key=/opt/k8s/work/ca-key.pem \
  -config=/opt/k8s/work/ca-config.json \
  -profile=kubernetes kube-controller-manager-csr.json | cfssljson -bare kube-controller-manager

1.3：将生成的证书和私钥分发到所有 master 节点

[root@k8s-master1 work]# for node_ip in ${MASTER_IPS[@]}
  do
    echo ">>> ${node_ip}"
    scp kube-controller-manager*.pem root@${node_ip}:/etc/kubernetes/cert/
  done

2、创建和分发 kubeconfig 文件

2.1：创建kubeconfig 文件

[root@k8s-master1 ~]# cd /opt/k8s/work

[root@k8s-master1 work]# kubectl config set-cluster kubernetes \
  --certificate-authority=/opt/k8s/work/ca.pem \
  --embed-certs=true \
  --server="${KUBE_APISERVER}" \
  --kubeconfig=kube-controller-manager.kubeconfig

[root@k8s-master1 work]# kubectl config set-credentials system:kube-controller-manager \
  --client-certificate=kube-controller-manager.pem \
  --client-key=kube-controller-manager-key.pem \
  --embed-certs=true \
  --kubeconfig=kube-controller-manager.kubeconfig

[root@k8s-master1 work]# kubectl config set-context system:kube-controller-manager \
  --cluster=kubernetes \
  --user=system:kube-controller-manager \
  --kubeconfig=kube-controller-manager.kubeconfig

[root@k8s-master1 work]# kubectl config use-context system:kube-controller-manager --kubeconfig=kube-controller-manager.kubeconfig

2.2：分发 kubeconfig 到所有 master 节点

[root@k8s-master1 work]# for node_ip in ${MASTER_IPS[@]}
  do
    echo ">>> ${node_ip}"
    scp kube-controller-manager.kubeconfig root@${node_ip}:/etc/kubernetes/kube-controller-manager.kubeconfig
  done

3、创建 kube-controller-manager systemd unit 模板文件

[root@k8s-master1 work]# cat > kube-controller-manager.service.template <<EOF
[Unit]
Description=Kubernetes Controller Manager
Documentation=https://github.com/GoogleCloudPlatform/kubernetes

[Service]
WorkingDirectory=${K8S_DIR}/kube-controller-manager
ExecStart=/opt/k8s/bin/kube-controller-manager \\
  --profiling \\
  --cluster-name=kubernetes \\
  --controllers=*,bootstrapsigner,tokencleaner \\
  --kube-api-qps=1000 \\
  --kube-api-burst=2000 \\
  --leader-elect=true \\
  --use-service-account-credentials=true \\
  --concurrent-service-syncs=2 \\
  --tls-cert-file=/etc/kubernetes/cert/kube-controller-manager.pem \\
  --tls-private-key-file=/etc/kubernetes/cert/kube-controller-manager-key.pem \\
  --authentication-kubeconfig=/etc/kubernetes/kube-controller-manager.kubeconfig \\
  --client-ca-file=/etc/kubernetes/cert/ca.pem \\
  --requestheader-allowed-names="aggregator" \\
  --requestheader-client-ca-file=/etc/kubernetes/cert/ca.pem \\
  --requestheader-extra-headers-prefix="X-Remote-Extra-" \\
  --requestheader-group-headers=X-Remote-Group \\
  --requestheader-username-headers=X-Remote-User \\
  --authorization-kubeconfig=/etc/kubernetes/kube-controller-manager.kubeconfig \\
  --cluster-signing-cert-file=/etc/kubernetes/cert/ca.pem \\
  --cluster-signing-key-file=/etc/kubernetes/cert/ca-key.pem \\
  --cluster-signing-duration=876000h \\
  --horizontal-pod-autoscaler-sync-period=10s \\
  --concurrent-deployment-syncs=10 \\
  --concurrent-gc-syncs=30 \\
  --node-cidr-mask-size=24 \\
  --service-cluster-ip-range=${SERVICE_CIDR} \\
  --pod-eviction-timeout=6m \\
  --terminated-pod-gc-threshold=10000 \\
  --root-ca-file=/etc/kubernetes/cert/ca.pem \\
  --service-account-private-key-file=/etc/kubernetes/cert/ca-key.pem \\
  --kubeconfig=/etc/kubernetes/kube-controller-manager.kubeconfig \\
  --v=4
Restart=on-failure
RestartSec=5

[Install]
WantedBy=multi-user.target
EOF

为各Master节点创建和分发 kube-controller-mananger systemd unit 文件

[root@k8s-master1 work]# for (( i=0; i < 3; i++ ))
  do
    sed -e "s/##NODE_NAME##/${NODE_NAMES[i]}/" -e "s/##NODE_IP##/${MASTER_IPS[i]}/" kube-controller-manager.service.template > kube-controller-manager-${NODE_IPS[i]}.service
  done

[root@k8s-master1 work]# for node_ip in ${MASTER_IPS[@]}
  do
    echo ">>> ${node_ip}"
    scp kube-controller-manager-${node_ip}.service root@${node_ip}:/etc/systemd/system/kube-controller-manager.service
  done

4、启动kube-controller-manager服务

[root@k8s-master1 work]# for node_ip in ${MASTER_IPS[@]}
  do
    echo ">>> ${node_ip}"
    ssh root@${node_ip} "mkdir -p ${K8S_DIR}/kube-controller-manager"
    ssh root@${node_ip} "systemctl daemon-reload && systemctl enable kube-controller-manager && systemctl restart kube-controller-manager"
  done

5、检查服务运行状态

[root@k8s-master1 work]# for node_ip in ${MASTER_IPS[@]}
  do
    echo ">>> ${node_ip}"
    ssh root@${node_ip} "systemctl status kube-controller-manager|grep Active"
  done

6、查看输出的 metrics

curl -s --cacert /opt/k8s/work/ca.pem --cert /opt/k8s/work/admin.pem --key /opt/k8s/work/admin-key.pem https://192.168.66.62:10257/metrics |head

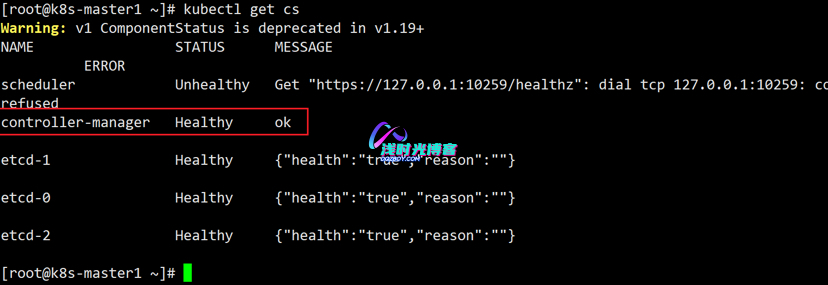

7、检查集群状态

[root@k8s-master1 work]# kubectl get cs

8、测试 kube-controller-manager 集群的高可用

将日志级别改为--v=4，然后停掉一个或两个节点的 kube-controller-manager 服务，观察其它节点的日志，看是否获取了 leader 权限。

八、部署高可用 kube-scheduler 集群

1、创建 kube-scheduler 证书和私钥

1.1：创建证书签名请求

[root@k8s-master1 work]# cat > kube-scheduler-csr.json <<EOF
{
    "CN": "system:kube-scheduler",
    "hosts": [
      "127.0.0.1",
      "192.168.66.62",
      "192.168.66.63",
      "192.168.66.64"
    ],
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
      {
        "C": "CN",
        "ST": "ShangHai",
        "L": "ShangHai",
        "O": "system:kube-scheduler",
        "OU": "dqz"
      }
    ]
}
EOF

1.2：生成证书和私钥

[root@k8s-master1 work]# cfssl gencert -ca=/opt/k8s/work/ca.pem \
  -ca-key=/opt/k8s/work/ca-key.pem \
  -config=/opt/k8s/work/ca-config.json \
  -profile=kubernetes kube-scheduler-csr.json | cfssljson -bare kube-scheduler

[root@k8s-master1 work]# ls kube-scheduler*pem
kube-scheduler-key.pem  kube-scheduler.pem

1.3：将生成的证书和私钥分发到所有 master 节点

[root@k8s-master1 work]# for node_ip in ${MASTER_IPS[@]}
  do
    echo ">>> ${node_ip}"
    scp kube-scheduler*.pem root@${node_ip}:/etc/kubernetes/cert/
  done

2、创建和分发 kubeconfig 文件

2.1：创建kuberconfig文件

[root@k8s-master1 ~]# cd /opt/k8s/work

[root@k8s-master1 work]# kubectl config set-cluster kubernetes \
--certificate-authority=/opt/k8s/work/ca.pem \
--embed-certs=true \
--server="${KUBE_APISERVER}" \
--kubeconfig=kube-scheduler.kubeconfig

[root@k8s-master1 work]# kubectl config set-credentials system:kube-scheduler \
--client-certificate=kube-scheduler.pem \
--client-key=kube-scheduler-key.pem \
--embed-certs=true \
--kubeconfig=kube-scheduler.kubeconfig

[root@k8s-master1 work]# kubectl config set-context system:kube-scheduler \
--cluster=kubernetes \
--user=system:kube-scheduler \
--kubeconfig=kube-scheduler.kubeconfig

[root@k8s-master1 work]# kubectl config use-context system:kube-scheduler --kubeconfig=kube-scheduler.kubeconfig

2.2：分发 kubeconfig 到所有 master 节点

[root@k8s-master1 work]# for node_ip in ${MASTER_IPS[@]}
  do
    echo ">>> ${node_ip}"
    scp kube-scheduler.kubeconfig root@${node_ip}:/etc/kubernetes/kube-scheduler.kubeconfig
  done

3、创建 kube-scheduler 配置文件

3.1：创建kube-scheduler配置文件

[root@k8s-master1 ~]# cd /opt/k8s/work
[root@k8s-master1 work]# cat >kube-scheduler.yaml <<EOF
apiVersion: kubescheduler.config.k8s.io/v1beta2
kind: KubeSchedulerConfiguration
clientConnection:
  burst: 200
  kubeconfig: "/etc/kubernetes/kube-scheduler.kubeconfig"
  qps: 100
enableContentionProfiling: false
enableProfiling: true
healthzBindAddress: ""
leaderElection:
  leaderElect: true
metricsBindAddress: ""
EOF

3.2：分发 kube-scheduler 配置文件到所有 master 节点

[root@k8s-master1 work]# for node_ip in ${MASTER_IPS[@]}
  do
    echo ">>> ${node_ip}"
    scp kube-scheduler.yaml root@${node_ip}:/etc/kubernetes/
  done

4、创建 kube-scheduler systemd unit 模板文件

[root@k8s-master1 ~]# cd /opt/k8s/work
[root@k8s-master1 work]# cat > kube-scheduler.service.template <<EOF
[Unit]
Description=Kubernetes Scheduler
Documentation=https://github.com/GoogleCloudPlatform/kubernetes
[Service]
WorkingDirectory=${K8S_DIR}/kube-scheduler
ExecStart=/opt/k8s/bin/kube-scheduler \\
--config=/etc/kubernetes/kube-scheduler.yaml \\
--bind-address=0.0.0.0 \\
--leader-elect=true \\
--tls-cert-file=/etc/kubernetes/cert/kube-scheduler.pem \\
--tls-private-key-file=/etc/kubernetes/cert/kube-scheduler-key.pem \\
--authentication-kubeconfig=/etc/kubernetes/kube-scheduler.kubeconfig \\
--client-ca-file=/etc/kubernetes/cert/ca.pem \\
--requestheader-allowed-names="aggregator" \\
--requestheader-client-ca-file=/etc/kubernetes/cert/ca.pem \\
--requestheader-extra-headers-prefix="X-Remote-Extra-" \\
--requestheader-group-headers=X-Remote-Group \\
--requestheader-username-headers=X-Remote-User \\
--authorization-kubeconfig=/etc/kubernetes/kube-scheduler.kubeconfig \\
--v=4
Restart=always
RestartSec=5
StartLimitInterval=0
[Install]
WantedBy=multi-user.target
EOF

5、为各节点创建和分发 kube-scheduler systemd unit 文件

[root@k8s-master1 work]# for (( i=0; i < 3; i++ ))
  do
    sed -e "s/##NODE_NAME##/${NODE_NAMES[i]}/" -e "s/##NODE_IP##/${MASTER_IPS[i]}/" kube-scheduler.service.template > kube-scheduler-${MASTER_IPS[i]}.service
  done

[root@k8s-master1 work]# ls kube-scheduler*.service
  • 分发 systemd unit 文件到所有 master 节点
[root@k8s-master1 work]# for node_ip in ${MASTER_IPS[@]}
  do
    echo ">>> ${node_ip}"
    scp kube-scheduler-${node_ip}.service root@${node_ip}:/etc/systemd/system/kube-scheduler.service
  done

6、启动kube-scheduler 服务

[root@k8s-master1 work]# for node_ip in ${MASTER_IPS[@]}
  do
    echo ">>> ${node_ip}"
    ssh root@${node_ip} "mkdir -p ${K8S_DIR}/kube-scheduler"
    ssh root@${node_ip} "systemctl daemon-reload && systemctl enable kube-scheduler && systemctl restart kube-scheduler"
  done

7、检查服务运行状态

[root@k8s-master1 work]# for node_ip in ${MASTER_IPS[@]}
  do
    echo ">>> ${node_ip}"
    ssh root@${node_ip} "systemctl status kube-scheduler|grep Active"
  done

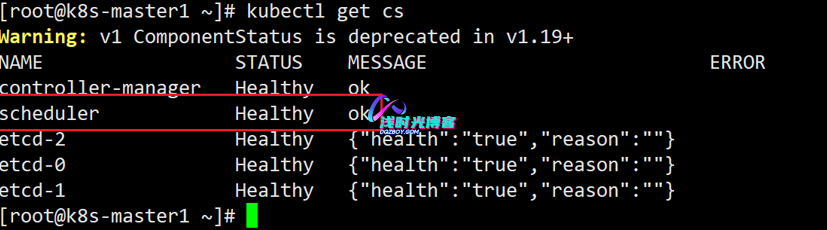

8、查看集群状态

[root@k8s-master1 work]# kubectl get cs

9、测试kube-scheduler集群高可用

将日志级别改为--v=4，然后停掉一个或两个节点的 kube-scheduler 服务，观察其它节点的日志，看是否获取了 leader 权限。


本文作者：浅时光博客
原文链接：https://www.dqzboy.com/9734.html
版权声明：知识共享署名-相同方式共享 4.0 国际 (CC BY-NC-SA 4.0)协议进行许可，转载时请以>超链接形式标明文章原始出处和作者信息
免责声明：本站内容仅供个人学习与研究，严禁用于商业或非法目的。请在下载后24小时内删除相应内容。继续浏览或下载即表明您接受上述条件，任何后果由用户自行承担。

相关文章

在Kubernetes集群中使用PID查找对应的Pod容器程序的方法

10月18日 · 2024年

K8s Pod探针详细介绍

4月3日 · 2023年

Cilium介绍并替代kube-proxy教程

12月19日 · 2022年

二进制K8s集群版本升级

6月13日 · 2022年
35 条回应

必须 注册 为本站用户， 登录 后才可以发表评论！

  1. wzibit浙江·杭州2024-6-11 · 14:37

    感谢分享，一直学习

  2. 遇见_730上海2024-4-20 · 16:14

    感谢分享，一直学习

  3. tinyhan吉林·长春2024-2-2 · 5:55

    感谢分享，一直学习

  4. Bsfs_無常广东·东莞2023-11-21 · 8:28

    感谢分享，一直学习

  5. DBCHO广东·深圳2023-9-12 · 18:45

    给大牛点个赞

Copyright © 2019- dqzboy.com. All Rights Reserved. 浅时光博客版权所有
浅时光博客 | 精彩程序人生
dqzboy.com
复制成功，若要转载请务必保留原文链接！
